Robot Trajectron V3: A Probabilistic Shared Control Framework for SE(3) Manipulation

Pinhao Song, Zhongxi Li, Ze Fu, Federico Ulloa Rios, Renaud Detry
KU Leuven, Dept. Mechanical Engineering, Robotics, Automation and Mechatronics
arXiv Code

Abstract

Teleoperating robotic arms for high-degree-of-freedom (high-DoF) manipulation is cognitively demanding and error-prone, particularly when using low-bandwidth interfaces. To bridge this gap, we introduce Robot Trajectron V3 (RT-V3), a probabilistic shared control framework designed for SE(3) grasping tasks:

  • Multimodal Context Encoding: RT-V3 utilizes a CVAE architecture with a transformer-based encoder to process unstructured context, such as point clouds and candidate grasp poses.
  • Factorized Action Distribution: To capture human intuition, the model factorizes actions into translational and translation-conditioned rotational distributions, explicitly modeling the user's tendency to prioritize position over orientation.
  • Intent Inference: During execution, the system performs Bayesian posterior estimation to fuse noisy user commands with a learned behavioral prior for accurate intent estimation.
  • Empirical Success: Experiments demonstrate high trajectory accuracy and competitive reactive planning. Real-world studies show RT-V3 significantly improves success rates and efficiency while reducing the user's physical and mental workload.

Highlights

Framework

Overview of our RTV3 framework

Overview of our RT-V3 framework. Robot Trajectron V3 (RT-V3) is a probabilistic shared control framework designed for SE(3) manipulation tasks. The architecture leverages a Conditional Variational Autoencoder (CVAE) to model the multi-modality of user intent. As shown in the Prior Training and Inference stage (left), the model utilizes a transformer-based architecture to encode unstructured context, including point cloud tokens and candidate grasp poses. To capture human motion patterns, the framework factorizes the action distribution into a translational distribution and a rotational distribution conditioned on translation. During Posterior Decision Making (right), RT-V3 performs Bayesian posterior estimation to fuse uncertain user commands with the learned behavioral prior, allowing for accurate intent estimation. The system also features an Asynchronous Shared Control Mechanism, which enables the robot to execute autonomous actions during periods of user inactivity, significantly reducing cognitive and physical workload.

Trajectory Prediction

RT-V3 predicts accurate SE(3) trajectories towards the intended goals.

Simulation Experiment

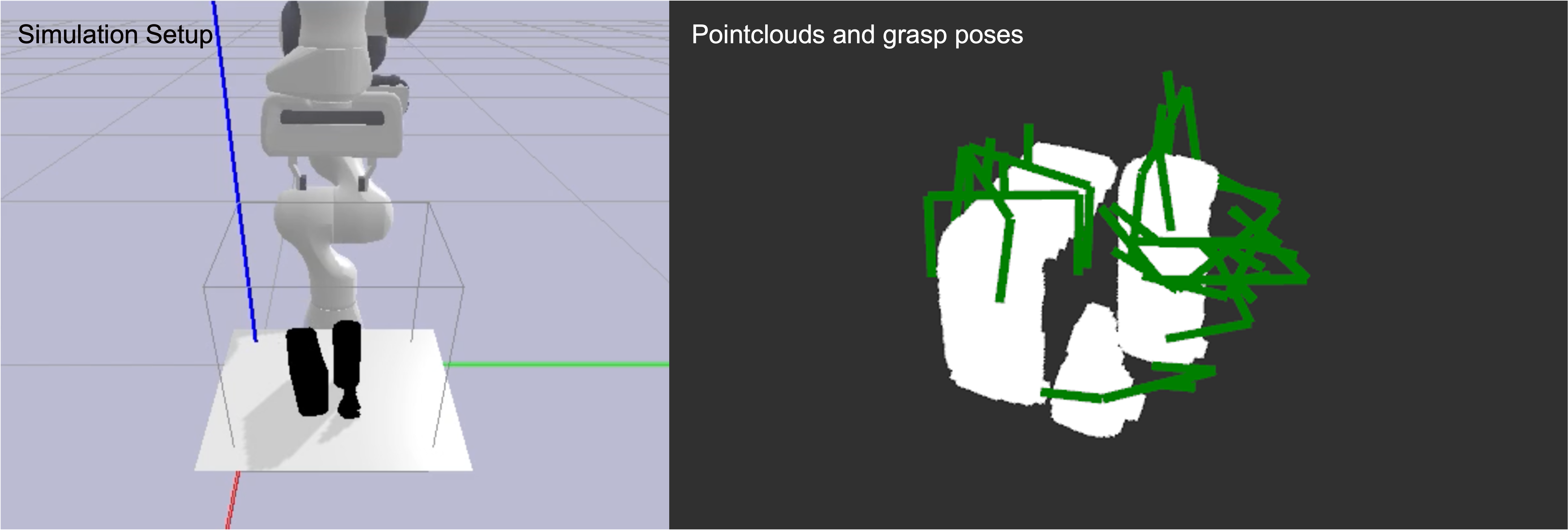

Simulation setup overview

[Left] Several objects are placed in a 30 x 30 x 30 cm3 workspace, with a Franka Panda randomly positioned at the workspace edge.

[Right] Pointclouds and feasible grasp poses are pre-sampled for each scene.

Four different simulated users teleoperate the robot to approach the pregrasps, while assistive algorithms provide assistive control.

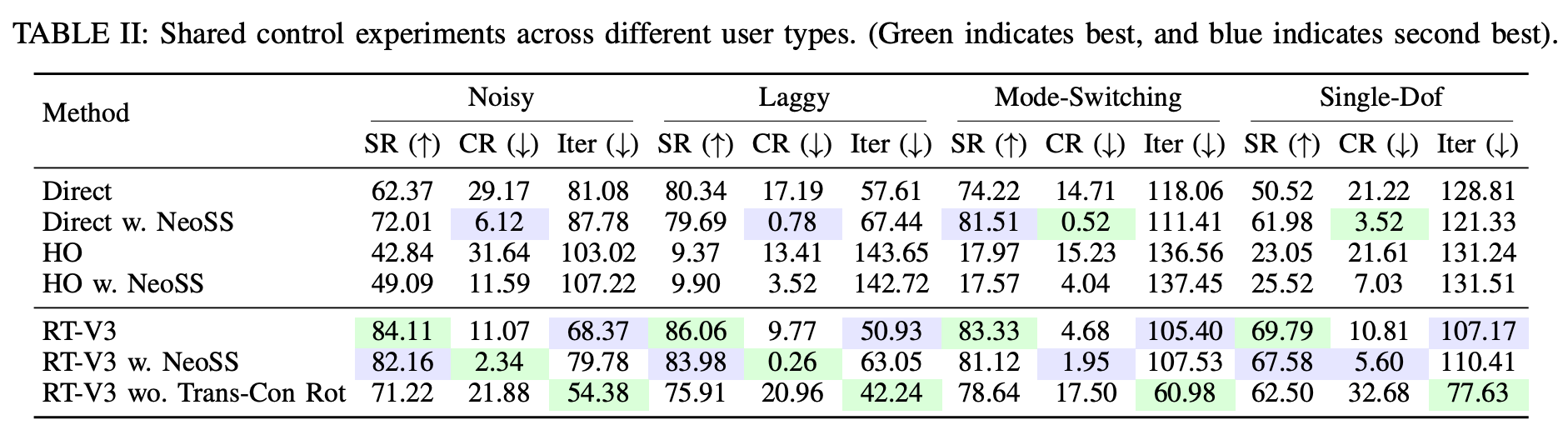

Simulation result

Real-world Experiment Setup

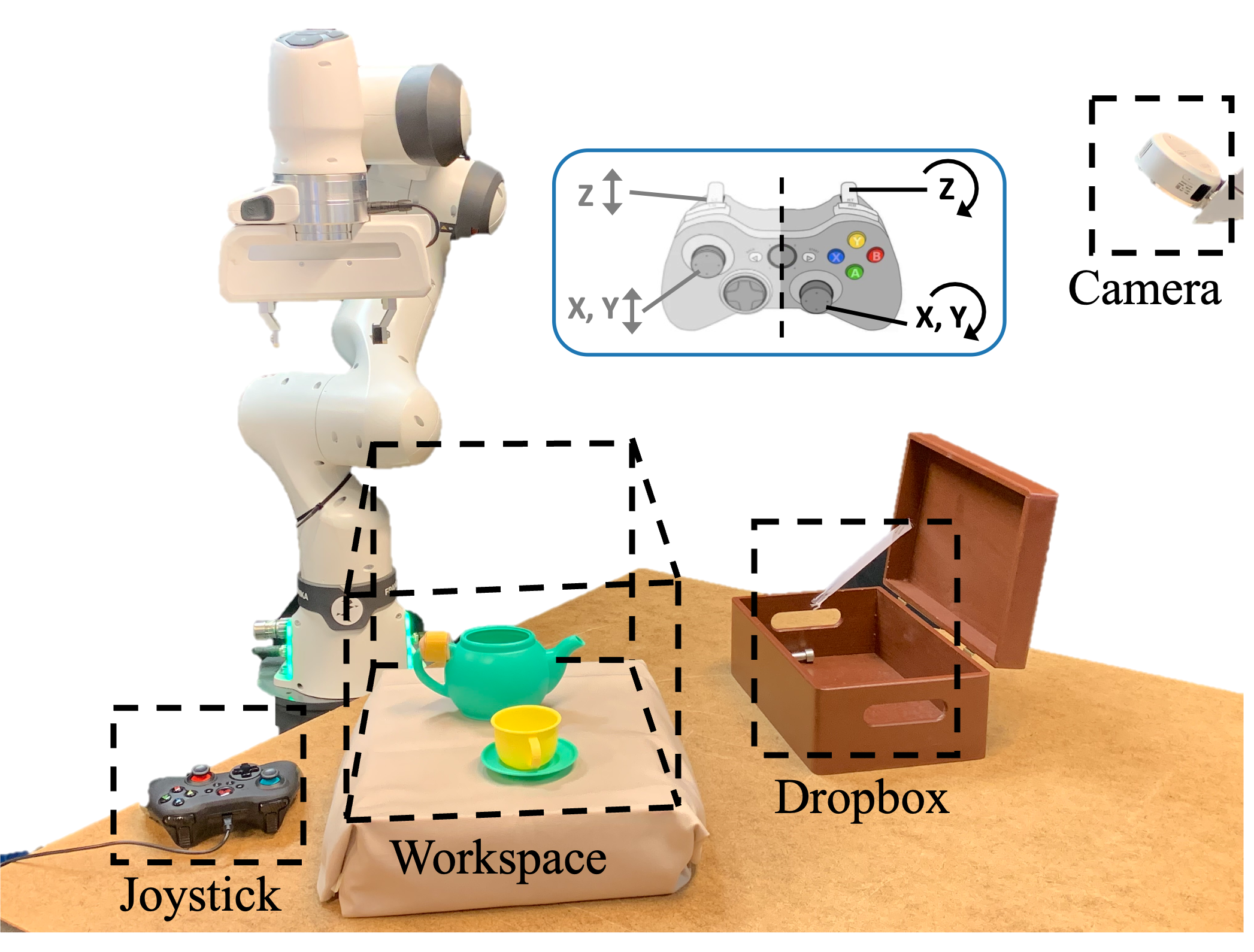

Overview of our Real-world experiment setup

Experimental Platform: The setup utilizes a 7-DoF Franka Research 3 robot and a top-down RGB-D camera to monitor the workspace. Users operate the robot using an Xbox joystick: the left joystick and triggers manage translation, while the right joystick and triggers control rotation. RT-V3 assists by fusing these manual inputs with learned behavioral priors via Bayesian posterior estimation to streamline high-DoF grasping tasks.

Real-world Shared Autonomy Tasks

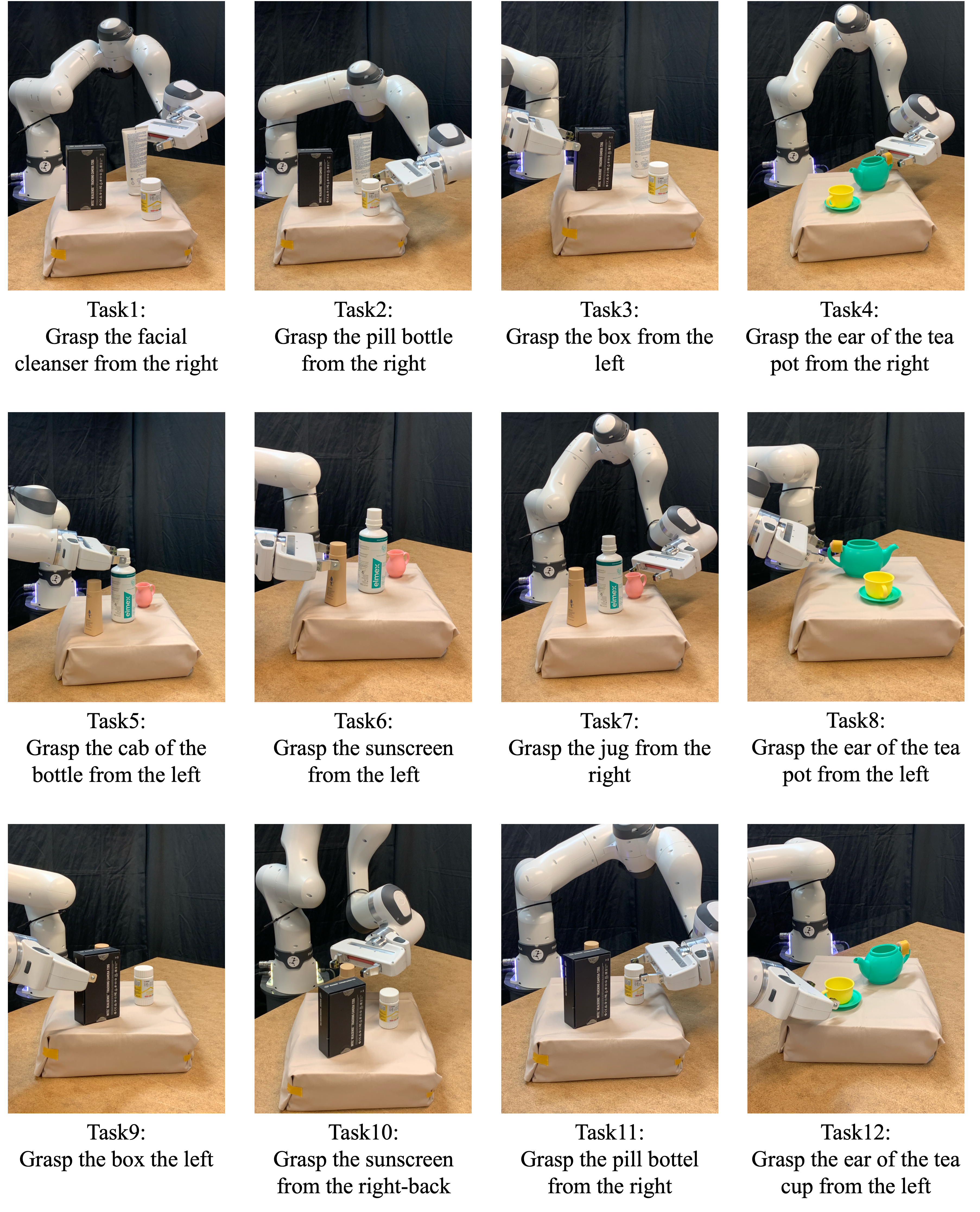

12 tasks in the real-world shared autonomy experiment

Diverse Manipulation Scenarios: We evaluated RT-V3 across 12 distinct tasks involving various daily objects such as pill bottles, sunscreen, and teapots. These tasks require grasping specific object parts from varied orientations (e.g., "Grasp the ear of the tea pot from the right"). The trials test the framework's ability to resolve multi-modal intent, distinguishing between different approach angles based on subtle user command cues.

Robot Trajectron V3 in Real World

RT-V3 demonstrates generalization across grasping different objects from various orientations.

Comparison with Baselines

Failure Cases

BibTeX

@misc{song2026robottrajectronv3probabilistic,
      title={Robot Trajectron V3: A Probabilistic Shared Control Framework for SE(3) Manipulation},
      author={Pinhao Song and Zhongxi Li and Ze Fu and Federico Ulloa Rios and Renaud Detry},
      year={2026},
      eprint={2607.09315},
      archivePrefix={arXiv},
      primaryClass={cs.RO},
      url={https://arxiv.org/abs/2607.09315},
}
